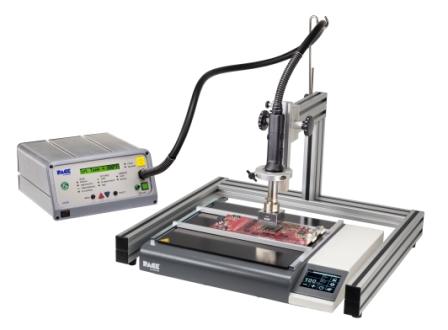

ST 925 combines ST 325 programmable convective/hot air rework station, PH 100 low profile IR preheater and ST 500A Z-axis platform.

ST 925 features a self-contained convective/hot air SMT rework station that is fully programmable and can be used to remove and install surface mount components.Pace ST925 web Can be used in either manual or “timed” modes. Manual mode means that the system generates heated airflow when the cycle button is pressed; when it is pressed a second time the system shuts off. “Timed” modes allow the operator to create up to 20 profiles consisting of time and temperature parameters, to ensure process control and repeatability. Pump-generated airflow first passes through a heater, where it is warmed to appropriate temperature, and then through optional heat-focusing nozzles that “shape” the air stream for the specific component. User-friendly front panel interface with digital display allows easy adjustment of temperature, flow rate and timing and intuitive programming and profile development. Unique adapter allows instant changing of nozzles, without tools. Over 80 nozzles available for a variety of surface mount components. Incorporates new PH 100 IR preheater, a high power, noncontact infrared preheating system with an ergonomic, low-profile design, magnetic PCB holders and intuitive 3.5" touchscreen display. Adjustable stand allows hands-free operation of handpiece heater, providing access to the entire work area, and giving you the capability to perform repetitive removals and installations.

Pace

www.paceworldwide.com
