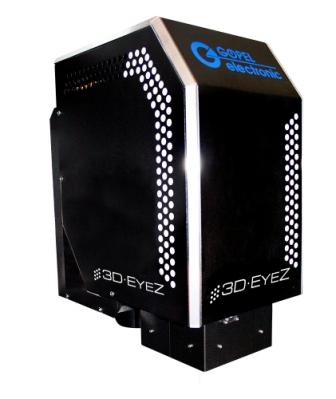

3D•EyeZ sensor system permits measurement of the press-in depth of press-fit connectors mounted on PCBs.

Directly measures inside drilled holes of a printed circuit board to determine position of pin tip within the PCB material. In holes with a diameter of up to 200µm, the exact position inside the hole can be measured with an accuracy of up to 5µm. Permits circumference and set depth inspection of conventional connector pins on PCBs. Possible test functions are control of the x/y deflection and measurement of the pin height. Available as an option on inline and standalone AOI systems.

Goepel Electronic

www.goepel.com
