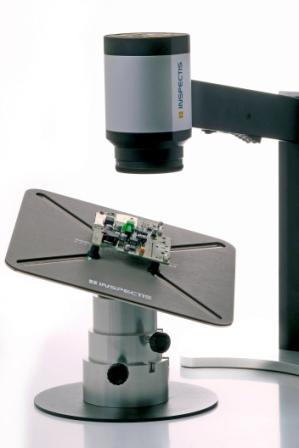

HD-150 combined tilt and telescope table tilts SMT/PCB assemblies or medical devices up to 30⁰ in all directions and at various user-adjustable heights under video microscope camera.

Can be used with Inspectis all-in-one cameras (C12 series, U10 and F30) when using additional +2, +3, and +5 diopter macro-magnification lenses. Features 3-stage telescopic post that provides height steps and allows step-less height adjustment between 52 and 155mm. Object table has same dimensions and format as HD-029 tilt table; uses same anti-static coated material as other Inspectis accessories. Surface is covered with high-friction antistatic mat. Four slots are available for attaching Inspectis HD-128 magnetic pegs or custom-made fixtures and holders.
