Insufficient Solder Bottom-Side Fillets Print E-mail
User Rating: / 2
PoorBest
Written by Paul Lotosky
Tuesday, 02 June 2009 19:58

Wave Soldering TroubleshootingWhen these defects occur, check the flux and conveyor speed.

Last month, we discussed insufficient solder topside fillets. This month, we look at insufficient solder bottom-side fillets (Figure 1). Per IPC-A-610, an acceptable condition is a 100% solder fillet and circumferential wetting present on the secondary (solder source) side of the solder joint. The minimum acceptable condition is a 330° circumferential fillet and wetting present for Class 3 boards, and 270° for Class 1 and 2 boards.

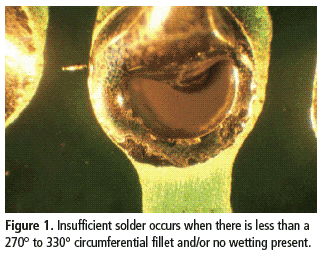

Fig. 1

Primary process setup areas to check are:

  • Conveyor speed too slow.
  • Excessive time over preheat, causing the flux to be burned off.
  • Excessive dwell time, causing flux to be destroyed before exiting the wave.
  • Excessive bottom-side board temperature, causing flux to be burned off before the wave.
  • Insufficient flux or flux activity.
  • Wave height too low on one or both waves.
Other things to look for in the process:
  • Insufficient solder temperature.
  • Excessive preheat.
  • Excess flux blow-off.
  • Board not seated properly.
  • Insufficient preheat.
  • Insufficient flux blow-off.
  • Solder wave height too low.
  • Contaminated flux.
  • Flux not making contact.
  • Solder wave uneven.
  • Flux SP GR too low.
  • Conveyor speed high.
  • Solder contaminated.
  • Flux SP GR too high.
  • Flux applied unevenly.


Other things to look for with the assembly:

  • Board contamination.
  • Improper board handling.
  • Component contamination.
  • Component leads too short.
Other things to look for with the bare board:
  • Board oxidized.
  • Mask in hole.
  • Board warped.
  • Board contaminated.
  • Poor plating in the hole.
  • Component contamination.
  • Misregistration of the mask.
  • Hole and pad misregistered.

Other things to look for with the board design:

  • Poor pallet design.
  • Internal ground plane.
  • Pad size mismatched.
  • Large ground plane on component side.
  • Lead-to-hole ratio too large.
  • Weight distribution.
  • Large ground plane on solder side.

Paul Lotosky is global director - customer technical support at Cookson Electronics (cooksonelectronics.com) This e-mail address is being protected from spambots. You need JavaScript enabled to view it .

Last Updated on Tuesday, 02 June 2009 20:16
