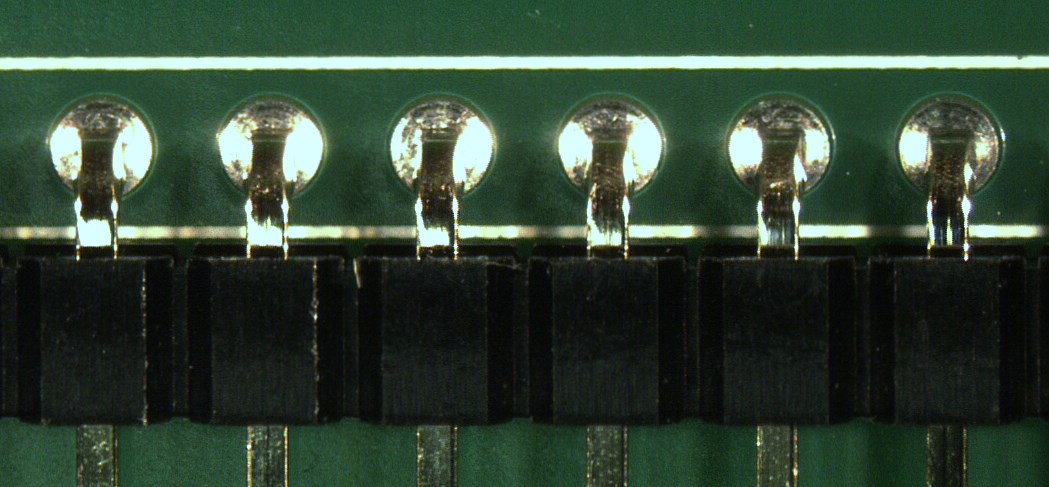

EO-G-001 water-based flux for selective soldering is halogen-free flux and meets all criteria under DIN EN 61190-1-1 and ISO 9454 for surface resistance. In tests, flux propagation area is less than that of alcohol-based fluxes tested, while rise-through and pad wetting were not adversely affected and soldering results were more than satisfactory. Cleanliness was as good or better than alcohol-based fluxes. Is classified OR/L0 under DIN EN 61190-1-1 or type 2.1.3.A under ISO 9454.

Emil Otto, emilotto.de
