Circuits Assembly Online Magazine - Amada Miyachi Launches Series 300 Electronic Weld Head

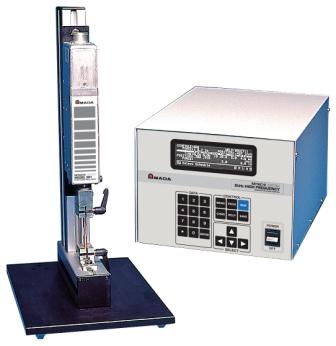

Series 300 electronic weld head offers precisely controlled weld force for miniature parts welding.

Enables up to 3 welds per sec., with programmable force and weld positions, excellent force and position repeatability, and displacement monitoring. For medical devices, automotive sensors and switches, reed switches, and coil termination, and electronic components. Newly redesigned linear magnetic force actuator and microprocessor-based electronic control. Force can be different in each schedule – ideal for “force on the fly” applications. AMYA Series300web GUI shows actual displacement (set-down) with o.0001" (2.5 micron) resolution. Allows user to fine-tune weld time, follow-up force, and weld energy relationships between the Series 300 and the external welding power supply. Built-in displacement monitoring feature can be used to optimize the weld and isolate potential quality problems. Comes in inline (301H/115V or 230V) and offset (302H/115V or 230V) models.
