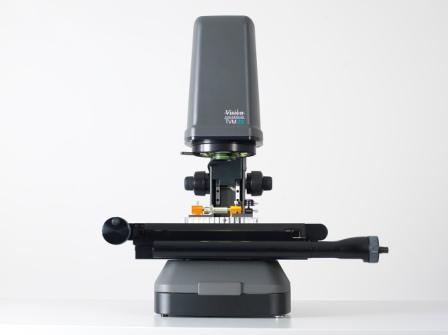

TVM Field of View (FOV) video measurement system combines time-saving instant field of view measurements with versatile measurement tools that cater to the needs of operators on the shop floor.

Small footprint saves space in the workshop or laboratory, while ease-of-use eliminates operator errors and reduces time, such as instant go/no go assessments. Can be configured to suit specific applications. Fixed stage FOV system enables instant, accurate measurements of small components, while a manually-controlled stage extends measurement for larger components up to 200mm x 100mm. The combination of a flat field telecentric lens and collimated sub-stage lighting facilitates TVM’s measurement of components of any shape or form, including turned parts, pressed metal components, injection-molded plastics, tubes and cables. Comprises two systems, TVM20 and TVM35, with FOV sizes of 20mm and 35mm, respectively. Components can be instantly measured within the field of view, with no need to adjust the focus or change the position of the subject under inspection. Comprehensive, user-friendly software supports a broad range of applications, with features such as simple data import/export, image stitching and reporting facilities.
