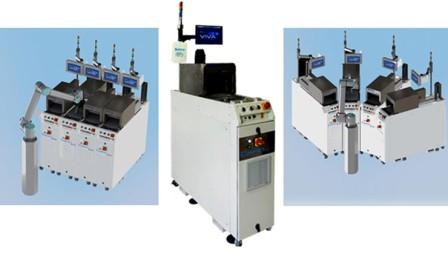

Compact Slim Next> series is a modular bed of nails tester suitable for deployment in as a series of equivalent systems, loaded either manually or via a COBOT solution.

Features a 180 x 300mm test area with automated receiver conceived for robotized loading. Fourteen slots are available for ATE instrumentation, as well as up to six user power supply units and an integrated control and management unit. Is scalable, with 300mm width and 762mm height. Suitable for serial installation of equivalent systems. Can be used with cobot, robot or in manual mode with a sliding receiver for robot loading. Has industrial monitoring on board, with the potential for remote monitoring of current and voltage consumption, mains supply, temperature, light indicators and other parameters useful to indicate correct operation.

Seica
seica.com
