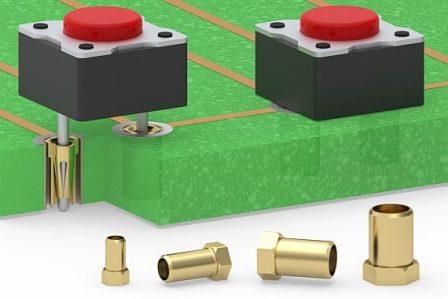

These 10 solderless press-fit receptacles deliver flush mount solutions for low-profile connections for interconnect requirements, maintaining a zero above-board profile.

Have precision-machined, hexagon-shaped flange pressed into the PCB plated through-hole until flush with surface of PCB. No soldering is required; press-fit forms gas-tight connection with plated through-hole. Are for traditional and rigid-backed flex PCBs. Smallest receptacle has lead acceptance range of 0.008" with 0.013" in diameter. Largest accepts 0.045" at 0.65" in diameter. Have open bottom for leads to pass through; are designed for minimal overall length. Open bottom eliminates need for precise lead trimming. Precision-machined from brass alloy and fitted with multi-finger beryllium copper contact. Gold plating on shell reportedly eliminates issues with material skiving leading to bridging during press-fit.
