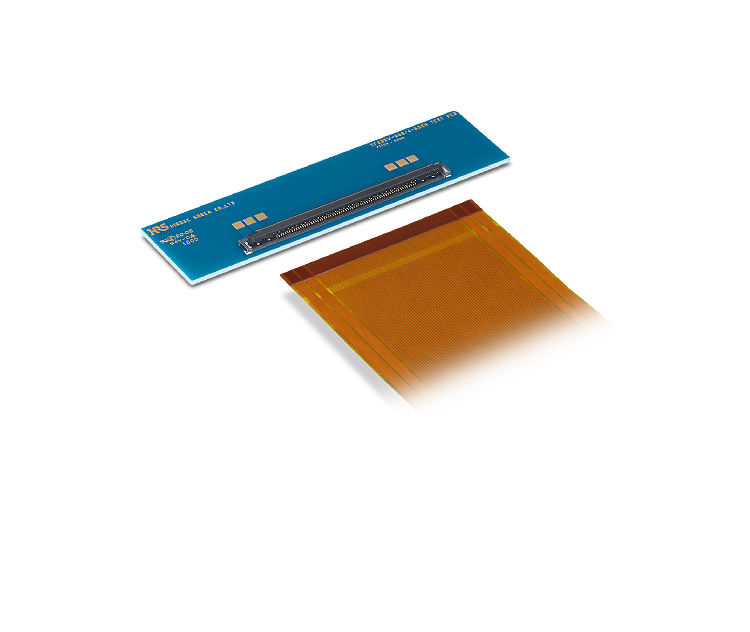

TF43SW series hybrid flexible printed circuit/flat flexible connector has power contacts capable of handling 12A and 0.5A signal contacts.

Features height of 1.2mm and mounting depth of 4mm. Is suitable for use with FPC/FFC standard thickness of 0.3mm (+/-0.03mm). Has 66 contacts with 0.5mm pitch and length of 47.88mm. Contact actuator design features retention tabs preventing unintended actuator separation. Retention tabs surround actuator axle and hook onto cavity, preventing actuator from opening. Actuator retention tabs, combined with two-point contact design, reportedly enhance reliability and robustness. Offers solder wicking prevention via nickel barrier plating. Is commonly used in portable and consumer electronic applications, including smart TVs, notebooks and tablets, gaming systems, HDD and optical pickups, as well as office equipment, medical devices and industrial machinery.

Hirose
hirose.com
