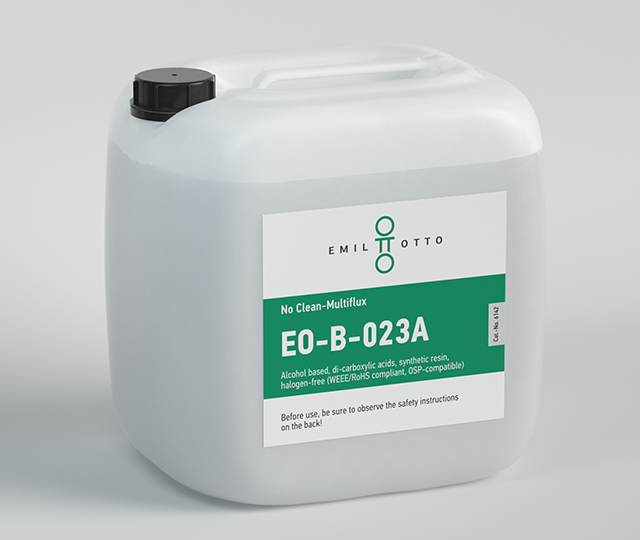

EO-B-023 A to E series fluxes are identical to EO-FC-006 filling compound used in tubular solders.

Both can be used in series production, as well as for manual soldering of small batches without paying attention to activator. All variants contain effective activators that support soldering process. Application can be done by all common application methods, except foaming. Solids content of EO-B-023A is 2% and goes up to 15% for EO-B-023E. Are characterized by low acid numbers. Can be used in wave, selective and manual soldering processes, as well as in cable assembly. Multifluxes are alcohol-based and have good soldering properties, especially when penetrating and wetting PCB. Process window is wide, with high thermal stability and good process activity over large time interval. Residue behavior is good.
