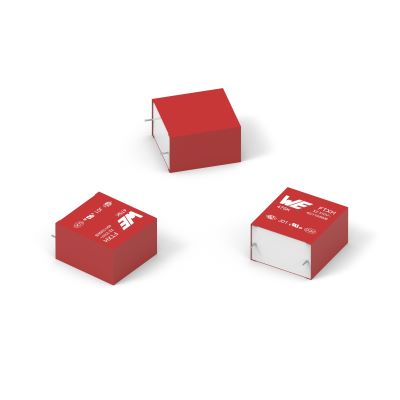

Würth Elektronik's WCAP-FTXH series of capacitors is ENEC 10, cULus, and CQC certified and belongs to the X2 safety class capacitors according to IEC 60384-14.

Designed for 310V rated voltage and is said to pass a 1000-hour test at 85°C and 85% relative humidity with the rated voltage applied. Operating temperature range extends from -40 to +110°C. Has self-healing properties through polypropylene dielectric and is available in 21 variants with different capacitance values (from 33 nF to 10 µF), voltage ramp-up rates, and insulation resistances. Has different sizes depending on values, and a pin pitch from 15mm to 37.5mm.

Würth Elektronik

www.we-online.com
