Hirose Releases IT14 Series Connector

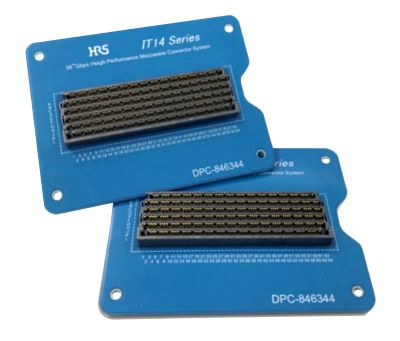

Hirose Electric's IT14 Series stackable ball grid array mezzanine connector is designed for high-speed and high-density server applications.
Features a self-mating design to eliminate the need for additional mating parts, reducing costs and improving reliability and performance. Supports high-speed data transmission more than 56Gbps NRZ/112Gbps PAM4. Ethernet OAM specified, and utilizes a high-density design (172DPs/in2) to meet telecom and networking application requirements. Has a stub-less two-point contact design for reliability, and a protective housing encapsulates the contact tips to prevent warping during mating. Available in a 688-position version and is 68.0mm long, 20.10mm wide, and 4.91mm high. Has a rated current of 1.2A, a rated voltage of 30V AC/DC, and an operating temperature range of -55℃ to 105℃.
Hirose Electric
