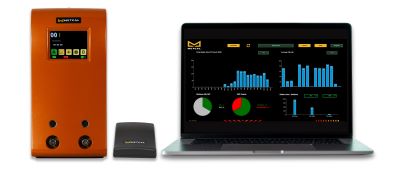

Metcal's CV-IOT Gateway Module and desktop application enables operations management to collect advanced soldering data from every benchtop station on their network.

Allows for utilization of information on every joint to improve process control and efficiency in the soldering process, and a standard handheld barcode scanner can be added to the setup for board-level traceability. Desktop application can be used to analyze data collected by the system to evaluate operator efficiency, quality of solder joints, temperature and power profiles, and the cartridges used (including geometries, part numbers, serial numbers, and lot codes) for each soldering process. Can also set up alerts to notify managers in real-time when processes are not being followed or when there is a concern with a soldering station. Stores information in standard database structure, and plugs directly into the CV unit and the computer or network only through a wired connection to ensure data security. Compatible with all Metcal Connection Validation soldering systems.

Metcal

www.metcal.com
