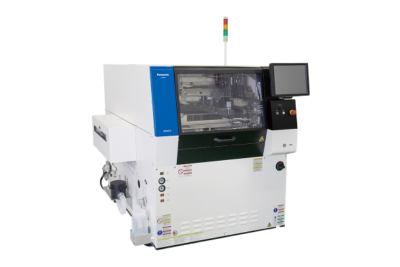

Panasonic Connect’s NPM-GP/L Screen Printer brings together hardware and software in a complete manufacturing solution, along with a full services support package.

Production line changes can occur within a cycle time of 12 seconds, including the cleaning cycle and with ±3.8µm positional repeatability. Can handle a variety of PCB sizes up to 510 x 510mm and includes functions to achieve high-quality printing, including mask adhesion to prevent dragging, adjustable squeegee for optimum fill, and a solder and adhesive dispense head. Delivers sub-four minute automated production line changeover from start to end, including automatic solder paste transfer, metal mask changer, and support pin replacement. Automates additional tasks during production, including solder supply using a perforated pot and a paper-free wiping unit that does not require solvent. Maintains status of materials during production and can automatically change printing parameters to achieve stable production. Machine-to-machine process control is enabled via communication with nine industry solder paste inspection partners across 29 different models.

Panasonic Connect North America

na.panasonic.com
