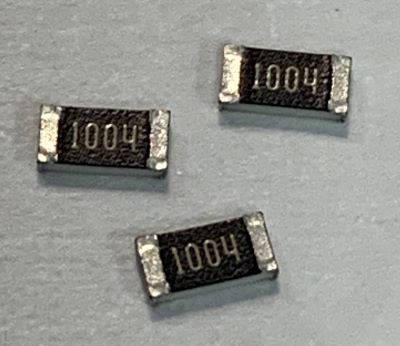

Stackpole’s RNCV resistors utilize thin film technology to achieve high voltage ratings, high stability, and excellent precision not achievable by thick film high voltage chip resistors.

Offered in the following sizes and voltage ratings: 0805 rated 450V, 1206 rated 700V, 1210 rated 1000V. Resistance values range from 121K to 3M in tolerances down to 0.1%, and TCR as low as 25ppm. Is said to have exceptional stability over industry standard tests, including shifts of less than 0.1% for most and 0.25% for the 85°C/85% relative humidity/10% biased humidity test. Also has excellent anti-sulfur performance with less than 1% shift under ASTM-B-809-95 testing at 105°C.

Stackpole Electronics

www.seielect.com
