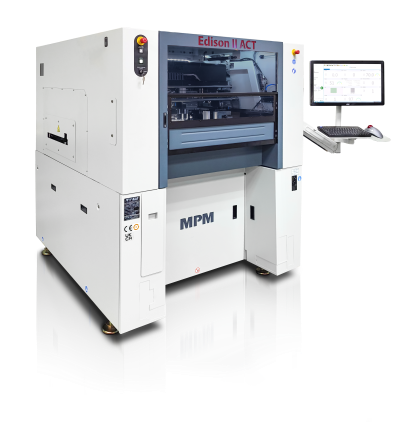

ITW EAE's Edison II ACT stencil printer is integrated with automated changeover technology that is fast and consistent with reduced operator requirement resulting in error-free changeover, and increased yield and throughput.

Is said to be the industry’s most accurate printer on the market with advanced technology needed for ultra-fine pitch and micro aperture printing processes, making it ideal for advanced semiconductor stencil printing applications. Has a proven print process capability greater than 2Cpk for 0201 metric components. Features a built-in ±8 micron machine alignment and ±15 micron wet print accuracy (≥2 Cpk @ 6 sigma). Has a transfer efficiency that exceeds requirements for the smallest apertures and features a single high precision load-cell with closed-loop pressure control and motor driven system to enable precise and consistent squeegee force control across the entire print stroke in both directions. Uses innovative machine design to achieve ultra-tight coplanarity between stencil and substrate enabling yield improvement for ultra-thin stencil printing.

ITW EAE

www.itweae.com

ITW Edison
