Vishay Intertechnology's series of 10MBd high speed optocouplers provides low power consumption to save energy in industrial applications.

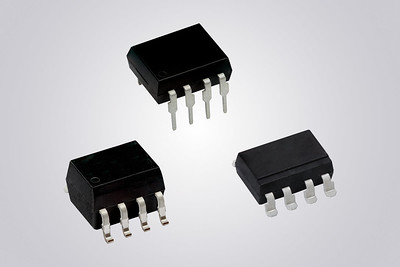

Includes single-channel VOH260A, VOIH060A, and VOWH260A and dual-channel VOH263A and VOIH063A, and features a wide voltage supply range of 2.7V to 5.5V and an open collector output. Offered in DIP-8, SMD-8, and SOIC-8 packages and utilize a highly efficient input LED coupled to an integrated photodetector logic gate with a strobable output. Combine a low supply current of 5mA maximum per channel with a low typical turn-on threshold current of 2mA typical. Are said to be ideal for data communications, high speed A/D and D/A conversion, level shifting, and providing high voltage safety in automation equipment, motor drives and tools. Feature an internal shield that provides a guaranteed common mode transient immunity (CMTI) of 15kV/μs minimum. Offer maximum rated withstand isolation voltage up to 5000VRMS and provide isolation distances from 5mm to 10mm to cover a wide range of requirements, including those of applications with working voltages exceeding 1000V.

Vishay Intertechnology

vishay.com
