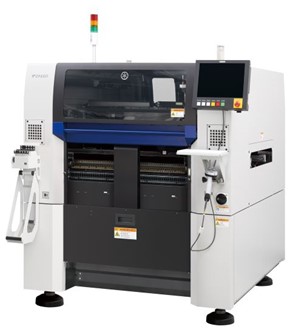

Yamaha Robotics' YRM10 surface mounter is said to feature the world's fastest one-beam/one-head Class 1 mounting performance of 52,000 components per hour.

Was developed as a successor to the entry model YSM10, and maintains compact size while introducing new technologies such as high-speed general- purpose versatility head and vision systems. Includes 10 in-line heads and scan camera that supports a wide range of components while maintaining high speed without the need for head replacement and achieving high mounting accuracy of ±35μm (Cpk ≥ 1.0). Supports 0201 (0.25 x 0.125mm) sized ultra- small chips to medium-sized or odd components, and also includes a side-view camera and optional coplanarity checker to detect components with a floating lead.

Yamaha Robotics

yamaha-motor-robotics.eu

yamaha YRM10
