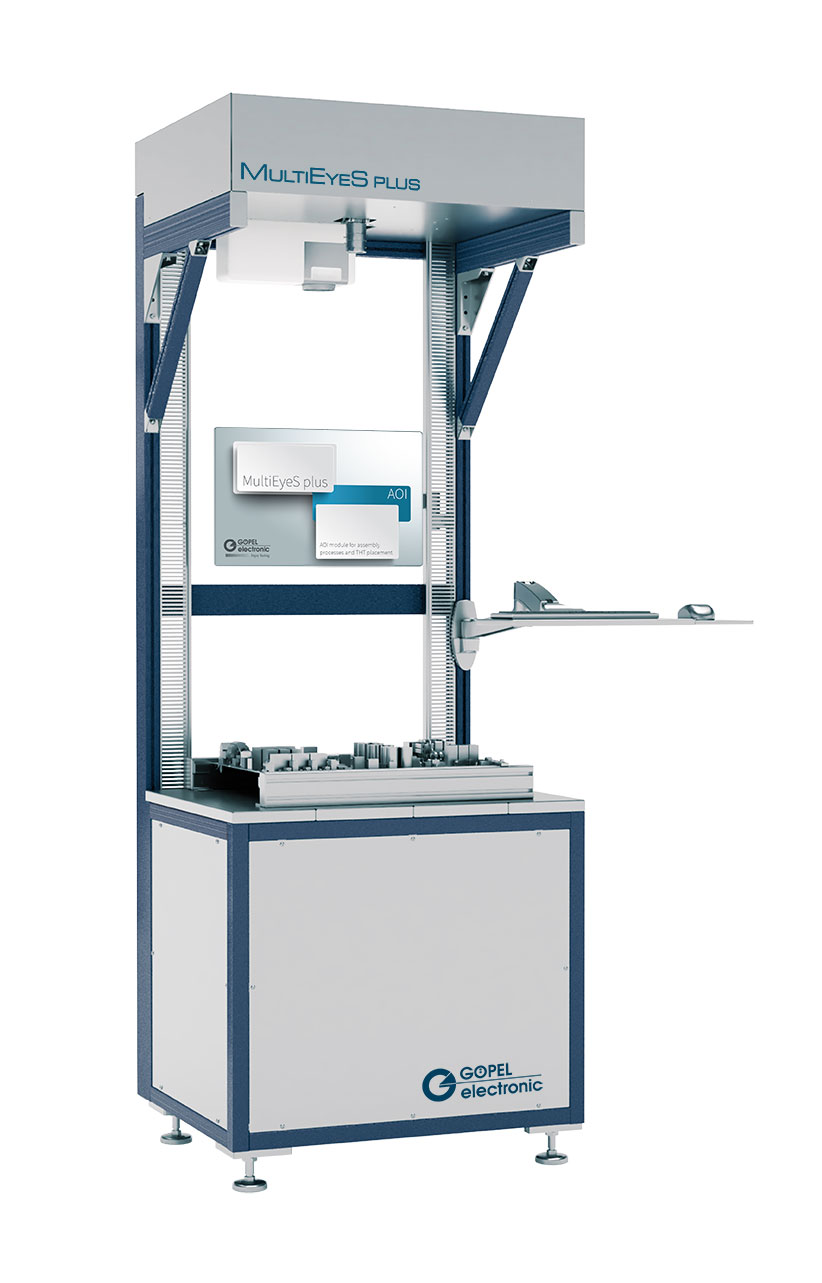

Göpel's MultiEyeS Plus AOI now features an intelligent assistance function for THT placement.

Features a 47MP image acquisition unit equipped with a flexible LED lighting system to provide very high image quality and detail resolution with an inspection area of up to 650mm x 550mm. Is able to reliably verify the presence, position and color of THT components, read labeled or laser-edged 2D codes and barcodes, as well as recognize text. Integrates a powerful laser projection into the AOI module for the assistance function, which makes it possible to intuitively support the manual placement process by displaying placement information directly in the operator's field of vision, and is able to display faults detected during placement directly on the PCB.
