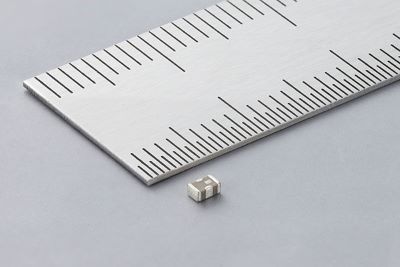

Murata Manufacturing's L Cancel Transformer can neutralize the equivalent series inductance (ESL) of a capacitor, optimizing its noise-reducing capabilities.

Is engineered to minimize noise within the frequency range of a few MHz to 1GHz by utilizing negative mutual inductance to reduce a noise-reducing capacitor’s ESL and increase the effectiveness of its operation, drastically reducing the number of required capacitors. Uses non-magnetic ceramic multilayer technology to ensure stable negative inductance and low DC resistance (maximum 55mΩ) even in the presence of current variations, and is said to be suitable for a wide range of applications, including consumer, industrial and healthcare products. Is suitable for temperatures up to 125°C and can be used with stable negative inductance up to 3A. Measures just 2 x 1.25 x 0.95mm and is available in tape and reel packing.

Murata Manufacturing

murata.com

murata LCT
