Glenbrook Technologies' RTX Series modular, real-time systems meets a variety of production requirements including circuit board components.

Well-defined path permits easy upgrading, while numerous options permit customization of any RTX model to specific applications. All hardware and software elements are fully compatible.

RTX-113 is designed for heavy production environments where x-ray is used to inspect PCBs and assembled PCBs containing advanced components such as BGA, micro BGA, QFN and other devices. Features patented x-ray camera technology that generates high-resolution, high-sensitivity images, revealing defects as small as 0.001" with a full 1.0" diameter field of view.

RTX-113 MicroTech is compact enough to fit in a lab or on production floor. Employs an 80kV, 10-micron focal spot tube with patented XRTV x-ray camera technology now enhanced for higher contrast. Permits up to 100x geometric and 225x optical magnification.

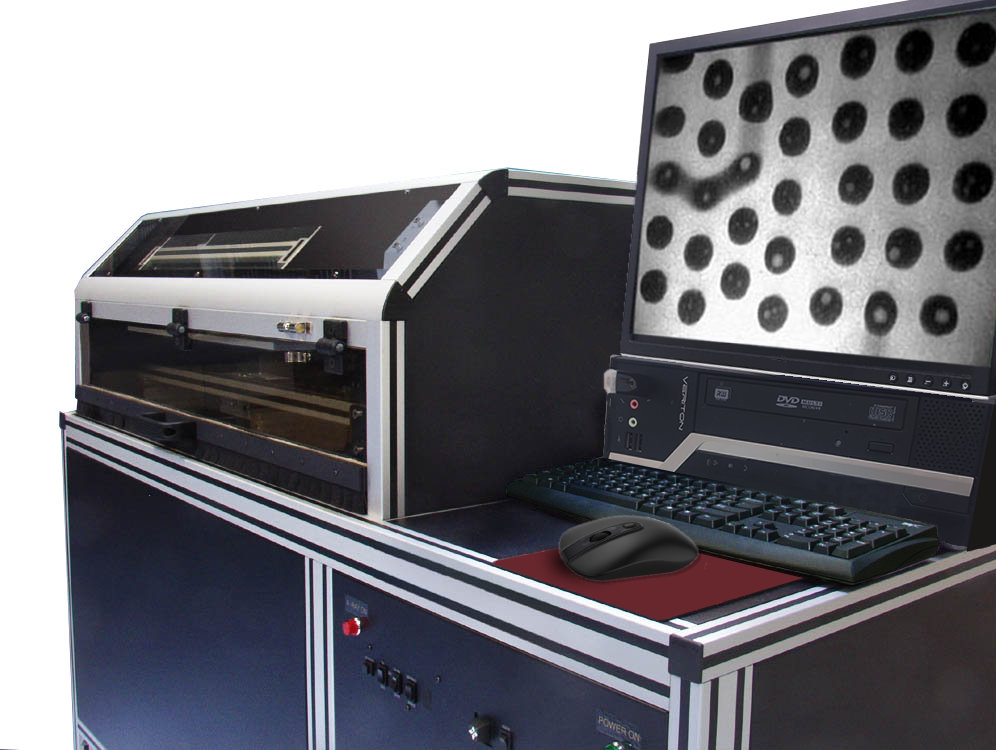

RTX-113HV is for inspecting BGA packages, including those that contain dense metal heat sinks that require a higher voltage x-ray source to clearly identify and troubleshoot production faults. Cabinet design permits integration into production environments and is totally upgradeable. Recommended for lead-free inspection requirements.

RTX Backplane accommodates boards up to 36″ x 42″ and weighing up to 40lbs. Can inspect up to 32-layer, 0.4"-thick PCBs and detects innerlayer errors and checks for hole-pad alignment during drilling. Inspects solder bond integrity of BGAs, LEDs, die attach and flip chip locations, and drilled holes on both small and standard boards.
