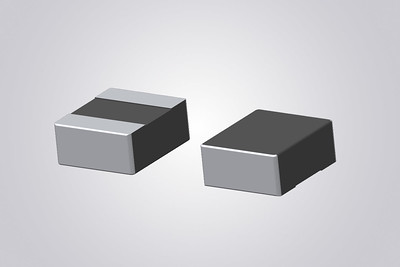

Vishay Intertechnology's commercial IHLL-1008AB-1Z and automotive grade IHLP-1008ABEZ-5A inductors offered in the 2.5mm by 2.0mm by 1.2mm 1008 case size.

Offer higher operating temperatures up to +165°C, a wide range of inductance values and lower DCR. IHLL-1008AB-1Z features terminals plated on the bottom only, enabling a smaller land patter, and offer inductance values from 0.33µH to 4.7µH.

IHLP-1008ABEZ-5A features terminals plated on the bottom and sides, allowing for the formation of a solder fillet that adds mounting strength against high mechanical shock while simplifying solder joint inspection. Is AEC-Q200 qualified, and provides reliable performance up to +165°C with a typical DCR down to 12.0mΩ.
