HSI1x instrument for Diamondx platform features 32 transmit lanes and 24 receive lanes with up to 12.8 Gbps data rate.

Can be used for protocol and physical layer testing of SerDes ports, such as MIPI, PCIexpress, VbyOne, HDMI and USB. Has 3.5x the lane count and twice the data rate of Diamondx HSIO and adds programmable lane-lane timing alignment. Features true parallel clock-data recovery and bit-error-rate testing, built-in PRBS pattern generation, user-programmable pattern memory, and flexible jitter and equalization settings.

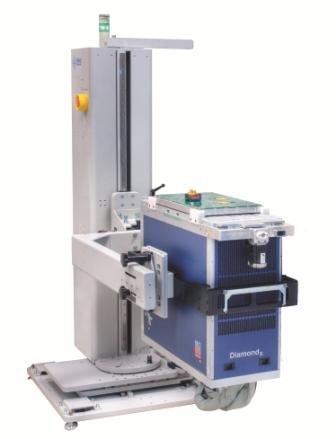

Xcerra Diamondx IMAx1 web

Xcerra
xcerra.com
