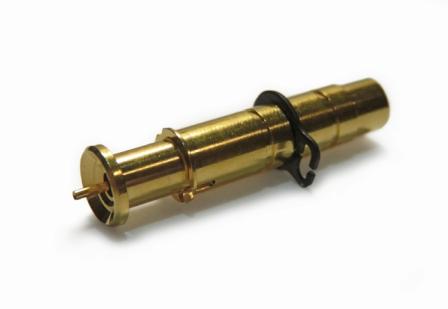

ECT Rolls Out CSP-40A-024, CSP-40G-021 RF Coaxial Spring Probes
CSP-40A-024 and CSP-40G-021 radio frequency (RF) coaxial probes mate to a variety of industry standard connectors such as MMCX, Fakra, SMB and U.FL.
Provide instrumentation quality interface for broadband RF measurements in excess of 6GHz, and provide a cost-effective solution for high-volume board testing. Offer signal integrity and is capable of bandwidth measurements in excess of 6GHz @ -1dB. Permit high-frequency functional tests in high-volume testing and engineering lab environments. Provide consistent 50Ohm impedance for repeatable measurements. Offer spring-loaded compliance for both the center signal probe and outer housing that provides ground contact. Articulated contact permits correction of targeting errors. Features rugged design for inline applications and easy-to-replace center conductor probe. Adjustable snap ring feature ensures easy and reliable mounting.
Everett Charles Technologies
