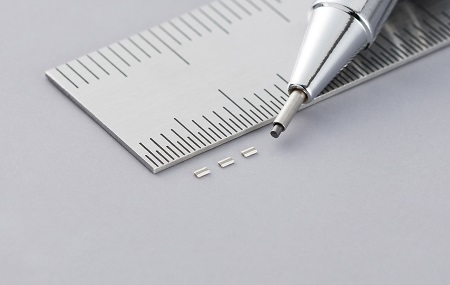

LLC152D70G105ME01 ultra-thin LW-reversed, low equivalent series inductor multilayer ceramic capacitor has capacitance value of 1.0µF ±20% for 4 Vdc-rated automotive applications.

Is 0204" (0.5 x 1mm) and has max. thickness of 0.22mm. Can be implemented on back of processor package. Construction flips electrodes through 90° so they are positioned on long side of rectangular chip; reverses length-to-width ratio. Are effective for achieving low-impedance design.

Murata Manufacturing
murata.com/en-us
