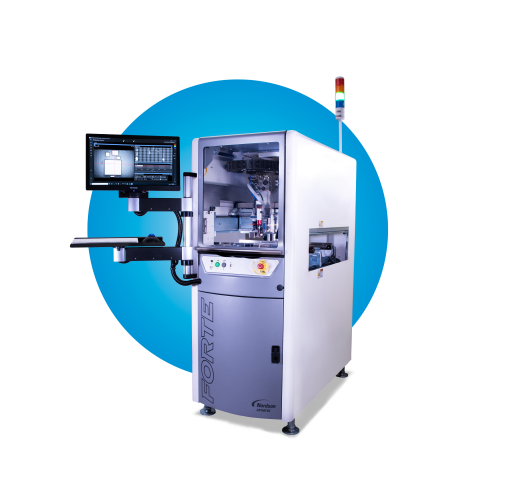

Asymtek Forte MAX fluid dispenser offers dual-valve jetting in two modes, and patented, real-time correction to accommodate skewed parts.

Designed for high-volume electronics manufacturing, it improves throughput for printed circuit board and flex circuit assembly, MEMs, and electromechanical assembly when dispensing sealants, encapsulants, underfills, and precise coating. Dispenses from two identical or different valves using a single set of hardware. In one configuration, two high-frequency IntelliJet jetting systems dispense fluid simultaneously for applications with multi-up, panelized, or patterned parts with consistent spacing. In a second configuration, two different fluids are dispensed on the same part from two different valves, such as for dam-and-fill encapsulation and in high-mix production environments. Has unique skew adjustment, to ensure production is not slowed by shifted parts and varied component heights. Real-time correction automatically adjusts for skewed parts and component height variation in x, y and z axes. Integrated dual-valve service station, closed-loop process controls, and nozzle-cleaning rail reduce operator maintenance, improve productivity, and keep dispensing process within set limits.

Nordson Electronics Solutions

nordson.com/en/divisions/asymtek
