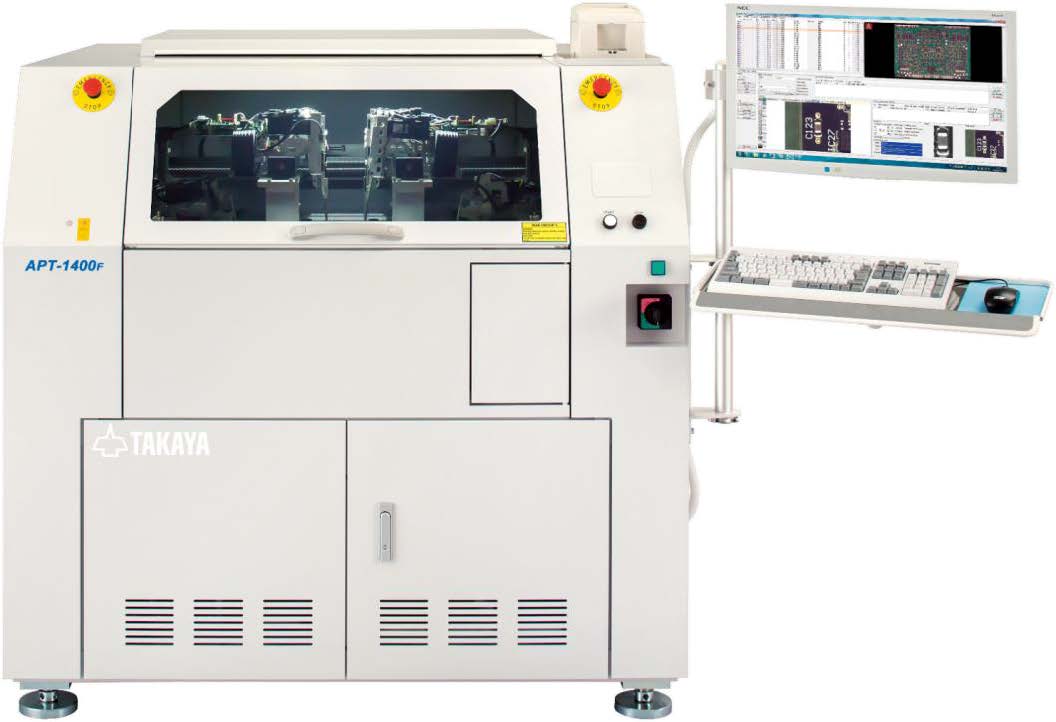

APT-1400F-SL-A flying probe test system for assembled PCBAs delivers larger testing area (635 x 610mm) to accommodate 5G communications and battery management system applications.

SL series provides 48% larger test area; A series designation (inline configuration model) enables automatic transfer of unit under test automatically. Automated conveyor system model can be built to order. Can provide buffer station to cut down on transport time, auto-conveyor width adjustment unit, and shuttle unit that operates when conveyor carries PCBA in or out of process area. Is capable of having probes contact small test pads deployed on latest SMT boards with high degree of accuracy and test board in short amount of time. Is equipped with four heads and six flying probes. Incorporates 16-bit DC four-quadrant sources, measurement system, and AC programmable generator that serves also as function generator to measure unit so tester can apply best-suited measuring signals according to specification of each electronic component and circuit conditions for circuit test and dynamic characteristics test. Dedicated measuring mode for small capacitance and high measuring accuracy circuit aid detection of range of assembly faults.

Takaya
takaya-itochu.com

APT 1400F Series catalog 002
