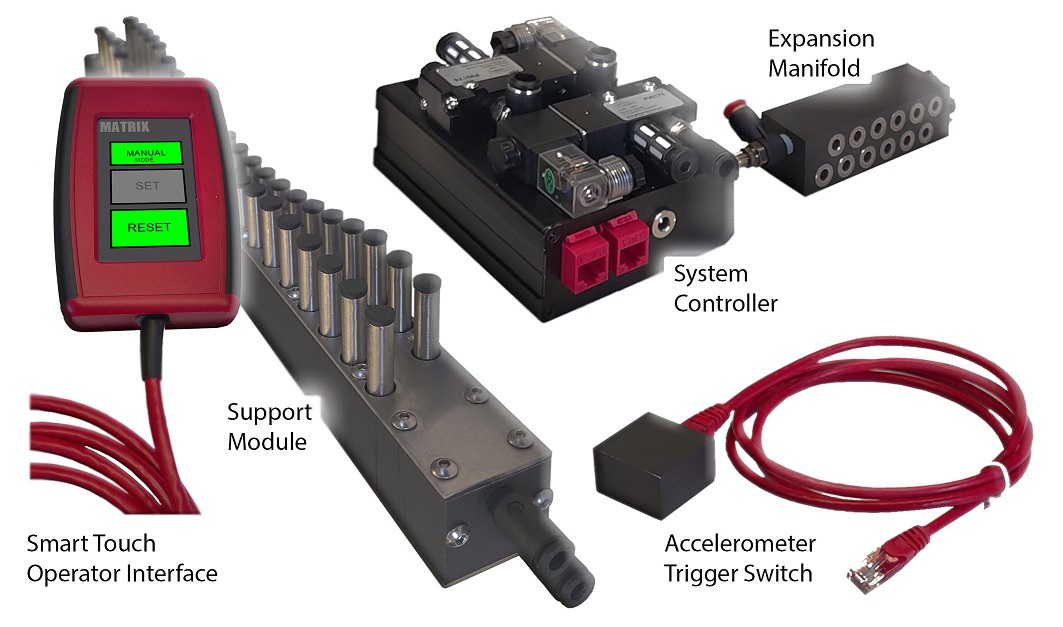

Matrix automatic SMT support tooling system includes pneumatic connections for product changeover using Smart Touch operator interface with on-screen operator instructions and access to downloadable process apps.

Includes feather-lite setup force and rigid locking force. Has more evenly spaced pin pattern. Support modules with diamond-shaped pin pattern fills in gaps that contribute to soft spots in support. Diamond grid pattern reportedly provides more even support. Installs on most screen printers and placers in about 30 min. Offers fully automatic PCB support to each consecutive board.

PSA Tool 100621A

PSA Systems
psasystems.com
