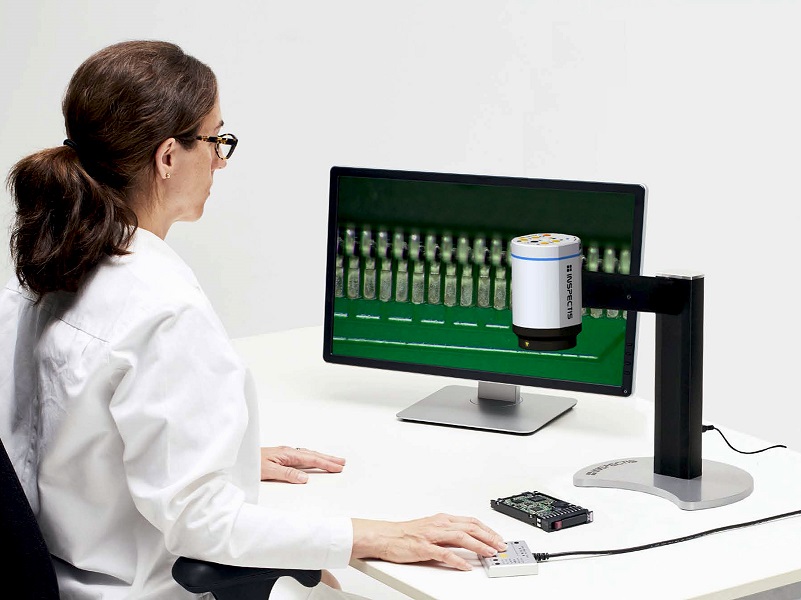

F35 full HD 1080p optical inspection system provides 60 frames per sec., lag-free video with true colors.

Is for compact miniaturized electronic assemblies to medical devices. Includes built-in easy-to-access lens and camera controls and is compact with excellent cable management. Provides image of solder joints on electronic PCBs and metallic parts with minimum glare and reflections. Camera and lens attributes include optical zoom, lens aperture size, focus and color balance; can be adjusted by integrated on-board controls via Inspectis software or through remote control consoles. Offers 35:1 motorized zoom lens with fast auto-focus and iris-controlled depth of field. Is supplied with range of lenses, lights, and other accessories. Includes built-in laser pointer and 230mm free working distance. Features high magnification and 35x motorized zoom designed in all aluminum housing. Is available in two industrial-grade form factors: F35 with integrated stand and illumination and F35s, a modular, configurable system. Standard optics have 1.7-61.4x magnification (24" monitor). Extra lenses can be added to magnify up to 720x.

Inspectis
inspect-is.com
