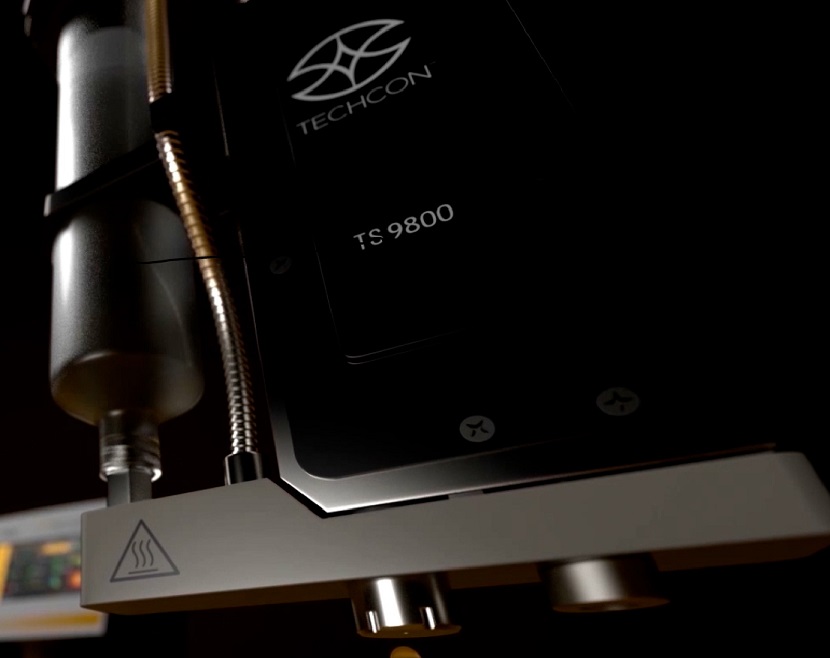

TS9800 series jet valve dispensing system is comprised of TS9800 Piezo-actuated jet valve and TS980 smart controller.

Uses piezo, non-contact jetting technology for increased speed and accuracy during dispensing process. Is capable of dispensing dots and lines as small as 0.5nL at up to 1500Hz continuous and 2000Hz max bursts, jetting viscosities up to 2 million cps. Modular features include external power source. TS980 Smart Controller offers touch-screen interface, reportedly featuring fast setup and easy calibration. Includes standard internet port. Applications include edge sealing and end sealing of LCD and OLED displays; die bonding and frame bonding for camera module assembly; jetting silicone phosphor in the LED assembly process; dispensing underfill in microelectronic package applications on PCBAs; applying microdots of UV adhesive in medical device applications.

Techcon
techcon.com
