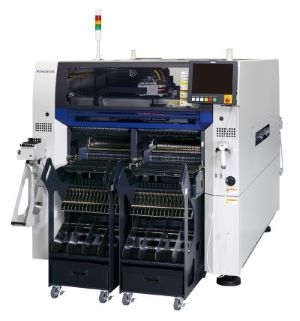

Yamaha Motor's YRM20DL surface mounter features a high-rigidity dual-lane conveyor that improves actual and per-unit-area productivity, and is built on the basic performance of the company’s universal mounter YRM20.

Supports a maximum PCB width of up to 330mm where the same width PCB is being conveyed at the front and rear while in dual-lane production mode. When parallel mounting, front and rear heads can operate without any interference up to a maximum PCB length of 380mm. Basic performance has been further enhanced to achieve a reported productivity of 120,000 CPH (under optimal conditions), along with a higher-accuracy placement of ±15µm (Cpk≥1.0) through the revision of the layout.

Yamaha Motor

www.yamaha-motor-robotics.eu

Yamaha YRM20DL
