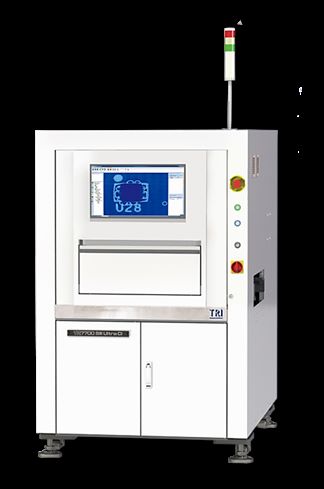

TRI's TR7700 SIII Ultra CI can detect coating issues, measure coating thickness, and inspect dispensed flux and glue.

Can precisely measure coating thickness from critical areas on the PCB, detecting unwanted coating spills near PCB connectors, sensitive components, and designated mounting holes. Can identify common coating issues, including cracks, bubbles/voids, insufficient/excess coating, and loss of adhesion, with algorithms calculating the maximum/minimum coating coverage length and measuring coating length, splash, or insufficient coating. Coating thickness measurement range is from 35μm to 750μm.

Test Research, Inc.

www.tri.com.tw
