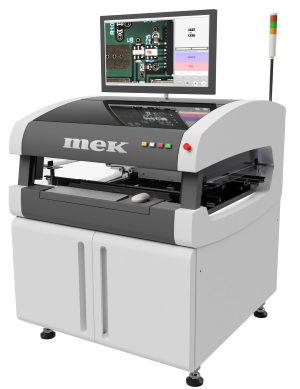

Mek's iSpector inline Automatic Optical Inspection system is an entry-level system designed to cater to customers with low volume, high mix production.

Utilizes DOAL, main and side LED light sources from three different angles, creating a meniscus profiling light pattern that allows for the inspection of component bodies and solder joints. Is equipped with Mek Colour Histogram analysis, which provides accurate and reliable inspection results with low false calls. Easy to install, and the Mek iMentor online training program is said to make it exceptionally easy to program.

Utilizes proven Mek software and has a clean and simple interface with powerful features, including full programming capabilities for solder inspection, component presence/absence, polarity, and value. Z-axis allows for the inspection of taller components and hybrid PCBs, and users can import NC Data from their pick and place system or most popular CAD/CAM software while also taking advantage of Mek's custom libraries. Is fully compatible with Mek's Catch System, which offers full traceability and industry 4.0 readiness and comprises modules such as Database CS Center, CS Repair, CS Analyser, and CS Watch, and is fully scalable from single AOI stations to multiple machines.

Marantz Electronics

www.marantz-electronics.com
