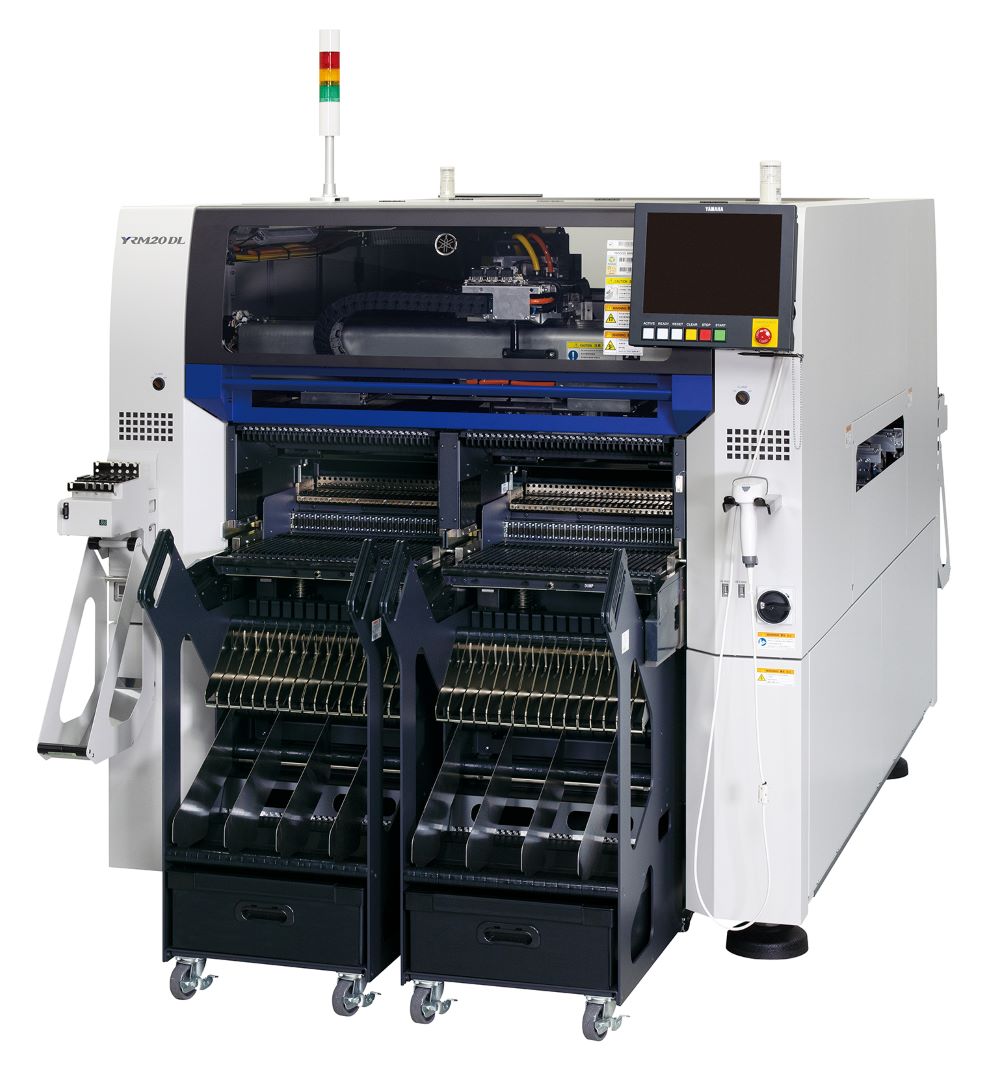

Yamaha YRM20DL surface mounter is a dual-lane version of the the YRM20.

Accommodates various dual-lane production methods. In a wide range of SMT production lines, from high-volume production to high-mix production, it significantly reduces transfer loss and other losses, and improves productivity. By revising the layout in the machine and further optimizing the motion control of the x-y axis, it achieves 120,000cph. In addition, high-accuracy mounting of +/-15µm (Cpk>=1.0) is achieved by improving the rigidity of the newly developed conveyor and the mount position compensation function.

In dual-lane production mode, the maximum board width is 12.9" (330mm) when boards of the same width are conveyed in two lanes. In single-lane production mode, where only one lane is used, the system can transfer boards up to 31.8" (810mm) in length, 24.0" (610mm) in width, 6.6lb. (3kg) in transportable weight, and 0.25" (6.5mm) in maximum board thickness. The laser unit's board height measurement and low static load nozzle reduce stress on tiny components during mounting.

Yamaha Motor IM

yamaha- motor-im.com
