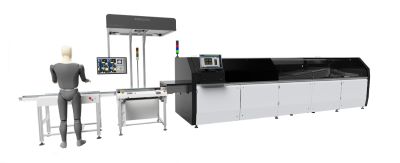

Mek's VeriSpector Inline is an inline THT AOI system designed for inspecting THT components before they enter wave or selective soldering machines to enhance inspection efficiency and accuracy in through-hole assembly processes.

Is said to deliver lightning-fast inspection times, allowing real-time assembly and placement inspection to prevent defects from entering the soldering process and minimizing the risk of faults in manual assembly. Offers flexible inspection capabilities to address various needs, and can detect presence/absence, orientation, shape, offset, polarity, text verification, fiducial reading, color check, 1D and 2D barcode reading, assembly materials fittings, damaged object detection, and more. Can accommodate PCB sizes to a maximum of 750mm x 500mm and a minimum of 460mm x 300mm when using the maximum zoom setting on the lens. Features standard 24MP camera and high-definition lens to capture fine details delivers with crisp and clear resolution, and upgrades to 42MP or 60MP cameras are available based on specific application requirements. Is compatible with Mek Catch System, enabling features like data collection, post defects classification, post reworking, data reporting and data analyzing.

Mek

www.marantz-electronics.com
