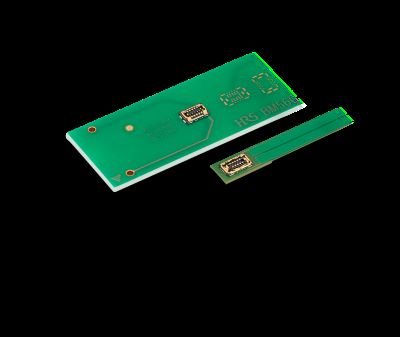

Hirose's BM56 Series multi-RF board-to-board connector provides a size reduction of up to 71% compared to conventional designs.

Feautures the industry’s smallest width of 2.2mm and supports multiple RF and digital signals with one board-to-board connector. Can also be placed on top of a device’s battery, offering more space-savings and design flexibility. Supports a wide range of high frequency applications, including 5G, and supports the following RF signal transmissions (VSWR): DC to 5GHz: 1.3 Max; 5-10GHz: 1.4 Max; 10-20GHz: 1.5 Max. Features a double shielded design that enhances EMI protection and is fully armored to cover both ends of the housing with metal for enhanced robustness and a significant reduction in the risk of housing damage from misalignment when mating. Also features a wide self-alignment range of ±0.3mm in the pitch direction and ±0.3 mm in the width direction, along with guidance ribs to provide smooth mating operation.

Hirose Electric
