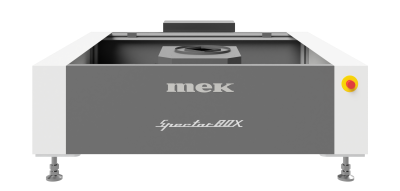

Mek's SpectorBOX X series is a modular full 3-D AOI system for Through-Hole Technology (THT) solder joints and THT components.

Can be used bottom-up for volume measurement of THT solder joints and pin height measurement, or top-down for a 150mm+ clearance for 3-D THT components measurement. Delivers direct volumetric measurements of solder joints from Selective, Wave, Robotic, Pin-in-Paste Reflow, Laser and Manual soldering systems in addition to accurate pin height measurement. Offers a clearance of 150mm (5.9″) and beyond on the THT components side and over 100mm (3.9″) on the THT solder side to accommodate most conveyor designs, and the X, Y and Z-axis moving optics ensure inspection of most pallet designs.

Marantz Electronics

marantz-electronics.com
