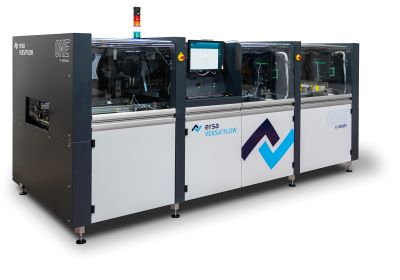

Kurtz Ersa's Versaflow One X-Series of selective soldering machines offers the option of two pots per soldering module, and can process up to eight assemblies (max. dimensions 350 x 508mm) and up to four assemblies (max. dimensions 508 x 508mm) simultaneously.

Features a 3mm pin chain/roller conveyor and program-controlled width adjustment as standard for maximum flexibility and performance, plus a flux module that featuers a multidrop system, with one or two flux heads and numerous options, that offers the precision to handle almost any conceivable geometry. Includes a basic version of a preheater that is equipped with a short-wave IR heating module from below, with top heating with convection in the preheater available as an option. Also offers contactless monitoring of the PCB temperature in the preheater, and features such as automatic nozzle activation and solder wire feed are also on board. Also includes connection to the KE CONNECT digital service platform on request.

Kurtz Ersa

kurtzersa.com
