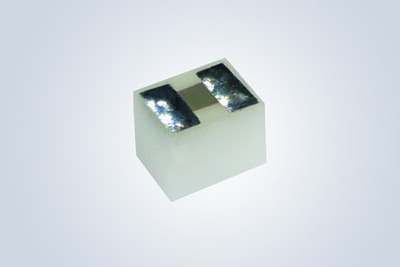

Vishay's CHA series of AEC-Q200 qualified thin film chip resistors provide high frequency performance up to 70GHz for automotive, space, avionics, telecom and military applications.

Is offered in the compact 02016 case size and is available in a wide range of resistance values from 10-500Ω. Are said to offer very low internal reactance and exhibit behavior close to a pure resistor over their large frequency range, with a nearly flat Z/R curve to 70GHz. Maintain their high frequency stability even after the most stressful AEC-Q200 tests – validated by their ΔR and Z/R measurements – guaranteeing high performance under harsh environmental conditions. Is ideal for automotive ADAS, LIDAR, connectivity, and 4-D radar systems; LEO satellites and space communication systems; military guidance and telemetry systems; drones; and RF antennas. Provide limiting voltage of 30V, rated power of 30mW at +70°C, and a temperature coefficient of ±100ppm/°C, with ±50ppm/°C available on request.

Vishay Intertechnology

vishay.com
