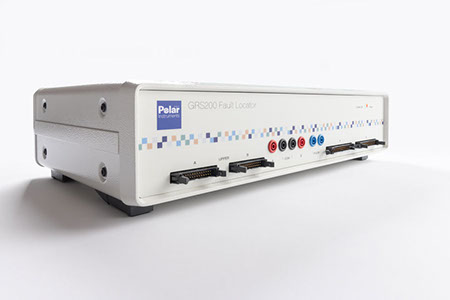

Polar Instruments GRS200 fault locator uses proven passive analog signature analysis and compares a faultless assembly with the board under test.

Is able to detect typical faults in electronics production, service and repair quickly and without extensive circuit knowledge. Features analog signature hardware and powerful software with live signature analysis, program mode and CAD data display. Can also integrate circuit diagrams, assembly photos, repair reports and an optional digital multimeter. Imports more than 20 different formats CAD data, including GenCAD, Hyperlynx, IPC-2581 and ODB++, and circuit networks can be graphically highlighted and the associated components displayed.

Polar Instruments

polarinstruments.eu
