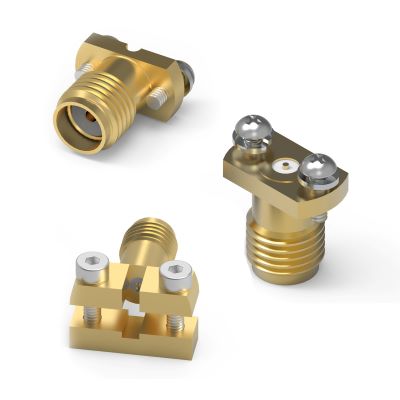

Würth Elektronik's WR-SMA PCB Solderless connector allows for quick and easy assembly without damage to the PCB.

Requires no soldering equipment and can be reused multiple times, making them suitable for prototyping or temporary use. Uses brass instead of stainless steel, which is said to provide a cost advantage while maintaining the same electrical performance and providing a robust mechanical connection. Also allows for easy repairs and hassle-free replacement in the field, without the need for special tools or knowledge. Is suitable for both strip and multistrip lines, as well as coplanar waveguides. Complies with the MIL-STD-348 standard, is designed for 50ohms and supports up to 27GHz, and is recommended for test equipment, evaluation boards and applications with an operating temperature range from -65°C to +165°C.

Würth Elektronik

we-online.com
