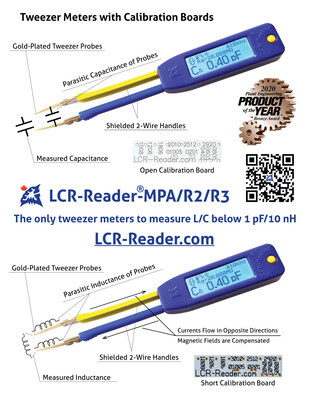

Siborg Systems' proprietary Short and Open Calibration Boards significantly reduce measurement offsets for LCR-Reader line of smart test tweezers.

Reduce measurement offsets to below 0.01pF for capacitance and 1nH for inductance. Are specialized dummy PCBs with holes positioned at various distances to represent different component sizes (e.g., 0201, 0402, etc.), and when tweezer-meter's test leads are placed in the corresponding holes for a given component size, display the actual offset capacitance.
