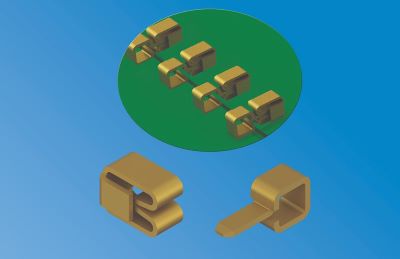

Keystone Electronics' compact SMT PCB edge connectors feature a horizontal orientation, making them well-suited for parallel board-to-board or board-to-component power or signal transfer.

Provide a low-profile connection with a small footprint, supporting high-density, high-current PCB packages on power and aluminum backplanes, and are compatible with PCB soldering applications, including reflow. Are manufactured from phosphor bronze with gold plate and are available in a variety of styles: Male (pin), Cat. #6100 (bulk) or Cat. #6100TR (tape and reel) and Female (socket) Cat. #6102 (bulk) or Cat. #6102TR (tape and reel). Female sockets are equipped with side guides for additional reinforcement to minimize PCB movement when installed.

Keystone Electronics

keyelco.com
