David BernardThe target style of the x-ray tube impacts magnification, resolution and quantity.

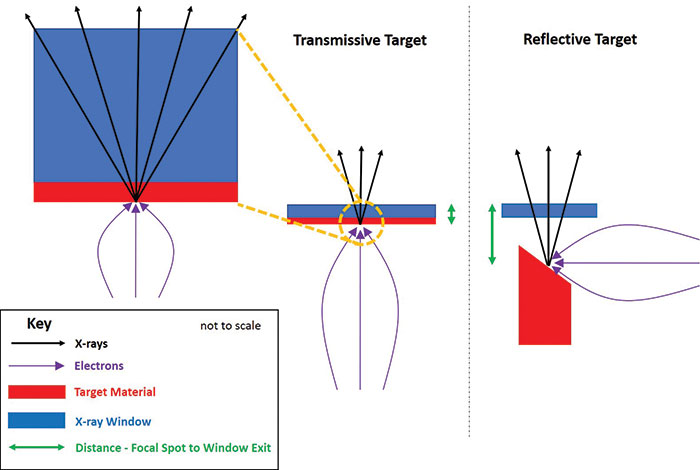

In last month’s column I explained the impact a transmissive or reflective target style of x-ray tube will have on the available magnification of an x-ray system. The difference between the two target types is shown in FIGURE 1. Not just the magnification is altered by the choice of target, however. The focus, or resolution, of the tube, as well as the flux, or quantity of x-rays, that the tube produces will also be affected. This is caused by the x-ray tube settings.





test1
Figure 1. Schematic of transmissive and reflective target types of x-ray tubes.

An x-ray tube has two primary control parameters. The first is the accelerating voltage, or kV, that is applied to the electrons generated within the tube. The higher the kV, the more penetrating the produced x-rays. In other words, the higher the KV, the greater the thickness and/or density of sample material the x-rays can pass through. If none of the x-rays can pass through, they cannot reach the detector, be captured and produce an image! The penetrating power of the x-rays is related to the (atomic number)3 of the material it passes through. Therefore, remember the same x-rays will pass through a lot less gold than aluminium.

The second control parameter is called the target current and is a measure of the number of electrons hitting the target per unit of time. Increasing the target current means more electrons impact the target, producing more x-rays/increasing the x-ray flux emanating from the tube. This control can be seen like a dimmer switch on the x-ray light source. However, like a dimmer switch on a household light, you cannot continue increasing this indefinitely without “burning out” the “bulb.” Therefore, the x-ray tube is limited to a maximum target current. This maximum will differ depending on the kV used, as there are limitations to the power available from the high voltage power supplies driving the tubes. At low kVs, more current is required from the power supply to maintain the same output power compared to high kVs (power = kV x current).

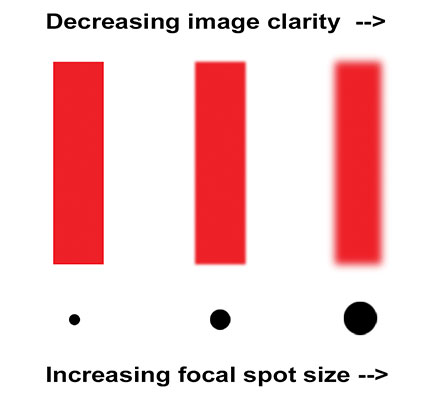

An additional parameter, usually automatically controlled by the x-ray tube following its optimization, is for the operation of the focus coils used within the tube to, as their name suggests, squeeze the electrons into as small a (focal) spot as possible on the target. The smaller the focal spot, the smaller the point of emission of the x-rays, and, therefore, the better the resolution of the tube (FIGURE 2).

test2
Figure 2. Schematic indicating the effect on the focus of an x-ray tube as the focal spot size increases.

Considering the above parameters, the x-ray tube manufacturer must compromise/balance several conflicting requirements when defining which target type to use. On one hand, the best resolution tube to see the smallest features will have the smallest focal spot, but this puts a lot of electrons into a very small area on the target and means very high current densities. High current densities generate heat that has to be removed, or else it could damage very thin transmissive targets, which may rely only on air-cooling to remove heat, so limiting the maximum target current it can handle. A reflective target could be water-cooled and so handle larger currents. On the other hand, the target surface will be more greatly affected/modified by high-resolution x-ray generation, and fresh target areas for the focal spot will be needed periodically. Often transmissive targets can be easily and quickly moved or replaced to retain the best resolution, but usually the design of reflective target tubes does not permit such a capability, so lower resolutions/larger focal spots are used in these tubes to prolong target life. Additionally, as the kV increases, the incoming electrons have extra energy that can produce x-rays – not just from the primary impact but also from secondary electrons that the primary can cause. This means the focal spot is somewhat broadened as the kV increases.

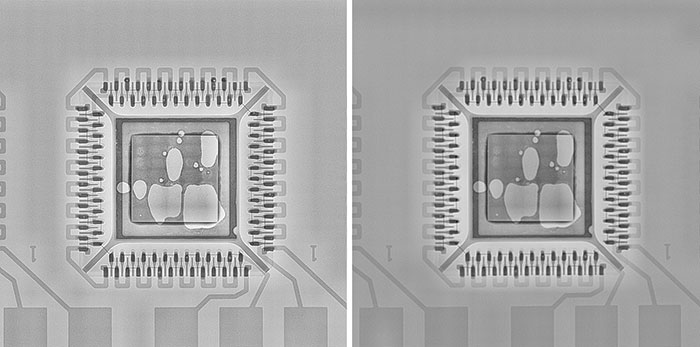

Overall, a transmissive target tube will be optimized to permit better image resolution but will be more limited in the x-ray flux it can produce. Reflective targets typically sacrifice resolution to achieve greater flux. Reflective targets are also most commonly used for higher kV (>225 kV) applications such as for CT. The question is what level of magnification, flux and resolution satisfies the inspection tasks needed? To give an example of these differences, FIGURE 3 shows two images of the same QFN at the maximum available magnification typically achievable with a reflective tube. The left image has the best resolution typically achievable by a transmissive tube and the right image the best resolution typically achievable by a reflective tube. The difference in clarity between the two at this magnification is present but is modest.

test3
Figure 3. X-ray images of QFN sample at maximum available magnification typical of a reflective x-ray tube. A transmissive x-ray tube is at left, a reflective x-ray tube at right.

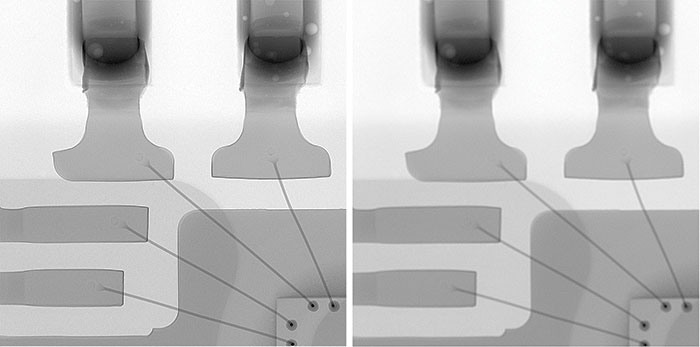

Using the same focus settings at the highest available magnification that a transmissive tube can achieve (FIGURE 4), however, shows the differences very clearly on the details of the 25µm diameter wires. Of course, the reflective target tube could not achieve this level of magnification in the first place!

test4
Figure 4. X-ray images of QFN sample at maximum available magnification typical of a transmissive x-ray tube. (Reflective tube could not actually achieve this level of magnification.) Transmissive x-ray tube at left, reflective x-ray tube at right. Wires are 25µm in diameter.

The target style of the x-ray tube in an electronics x-ray system impacts magnification, resolution and flux. This, therefore, affects the image detail and quality. The trade-off between these factors must be considered to ensure the best available image to provide the best analytical information for your applications, now and in the future.

Au.: Images courtesy Peter Koch, Yxlon International.
