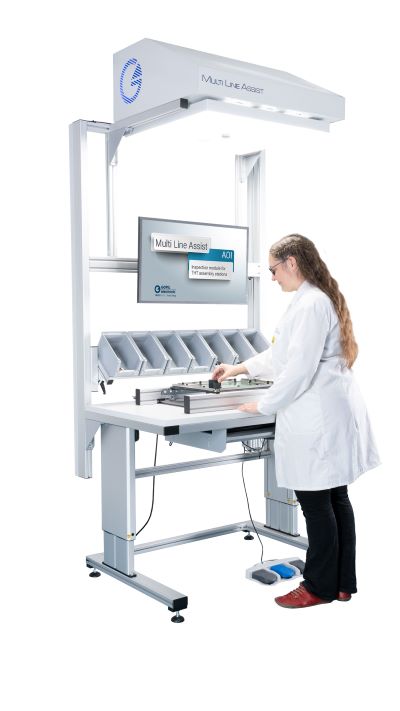

Göpel's Multi Line Assist AOI module guides the operator through the assembly process and checks whether the work was carried out correctly after each assembly.

Projects placement information directly into the operator's field of vision on the placement table and checks placement results in real time for immediate recognition and correction. Features a 47 megapixel image capture unit and a flexible LED lighting system to guarantee high image quality and detail resolution with an inspection area of up to 660mm x 450mm. Is available in three resolution variants with three different image field sizes. Achieves an inspection speed of up to 800cm²/s. Can be integrated into familiar, existing assembly tables and integrated into existing MES systems and traceability solutions.

Göpel Electronic

goepel.com
